WebService学习

发表于 更新于

WebService的两种实现方式，Soap WebService、Restful WebService。

RPC refers to Remote Procedure Call.
Use of RPC is recommended when there is heavy use of the client/server model.
RPC allows for the processing of multiple threads that share a given address.
RPC employed on a platform that uses EJB.
Web Service used in non-Java platforms when an app wants access.
Web Service also is used for synchronization of asynchronous communication.[1]

WebService是一种技术，有两种实现方式：JAX-WS(Java API for XML-Based Service面向消息)、JAX-RS(Java API for Restful WebService面向资源)
ps. RESTful 请求常用的方法有以下四种：

  1. GET: 用于查询对象
  2. POST: 用于创建对象
  3. PUT: 用于修改对象
  4. DELETE: 用于删除对象

1. CXF 基于 SOAP 的 WebService

1
2
3
4
5
6
7
8
<!-- IHelloWorld.java -->
package top.leezy.www;
import javax.jws.WebService;

@WebService
public interface IHelloWorld {
	String sayHello(String name);
}
1
2
3
4
5
6
7
8
<!-- HelloWorldImpl.java -->
package top.leezy.www;

public class HelloWorldImpl implements IHelloWorld {
	public String sayHello(String name) {
		return "Hello " + name;
	}
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
<!-- applicationContext.xml -->
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:tx="http://www.springframework.org/schema/tx"
    xmlns:jaxws="http://cxf.apache.org/jaxws" xmlns:cxf="http://cxf.apache.org/core"
    xmlns:wsa="http://cxf.apache.org/ws/addressing"
    xsi:schemaLocation="http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-2.1.xsd
     http://cxf.apache.org/core http://cxf.apache.org/schemas/core.xsd
    http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
    http://cxf.apache.org/jaxws http://cxf.apache.org/schemas/jaxws.xsd">

    <import resource="classpath:META-INF/cxf/cxf.xml" />
    <import resource="classpath:META-INF/cxf/cxf-servlet.xml" />

    <jaxws:endpoint id="HelloWorld" implementor="top.leezy.www.HelloWorldImpl" address="/sayHello" />

</beans>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
<!-- web.xml -->
<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns="http://xmlns.jcp.org/xml/ns/javaee"
	xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_3_1.xsd"
	id="WebApp_ID" version="3.1">
	<display-name>CXFwebservice</display-name>
	<welcome-file-list>
		<welcome-file>index.html</welcome-file>
	</welcome-file-list>

	<context-param>
		<param-name>contextConfigLocation</param-name>
		<param-value>classpath:top/**/applicationContext.xml</param-value>
	</context-param>
	<listener>
		<listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
	</listener>
	<servlet>
		<servlet-name>CxfServlet</servlet-name>
		<servlet-class>org.apache.cxf.transport.servlet.CXFServlet</servlet-class>
		<load-on-startup>1</load-on-startup>
	</servlet>
	<servlet-mapping>
		<servlet-name>CxfServlet</servlet-name>
		<url-pattern>/webservice/*</url-pattern>
	</servlet-mapping>
	<filter>
		<filter-name>encoding</filter-name>
		<filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
		<init-param>
			<param-name>encoding</param-name>
			<param-value>UTF-8</param-value>
		</init-param>
		<init-param>
			<param-name>forceEncoding</param-name>
			<param-value>true</param-value>
		</init-param>
	</filter>
	<filter-mapping>
		<filter-name>encoding</filter-name>
		<url-pattern>*.jsp</url-pattern>
	</filter-mapping>
	<filter-mapping>
		<filter-name>encoding</filter-name>
		<url-pattern>*.do</url-pattern>
	</filter-mapping>

</web-app>

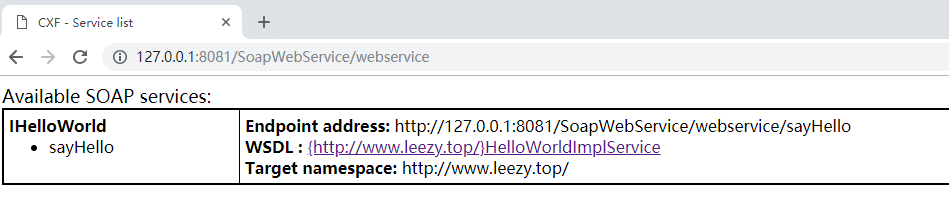

打开浏览器输入：http://127.0.0.1:8081/SoapWebService/webservice
SoapWebService

2. CXF 基于 RestFul 的 WebService

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
<!-- Config.java -->
package top.leezy.www;

import java.util.LinkedList;
import java.util.List;

public class Config {
	public static List<User> users;
	static {
		users = new LinkedList<User>();
		User user = new User();
		user.setId("123456");
		user.setName("SAKURA");
		users.add(user);
	}
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
<!-- User.java -->
package top.leezy.www;

import javax.xml.bind.annotation.XmlRootElement;

@XmlRootElement(name = "User")
public class User {
	private String name;

	private String id;

	public String getName() {
		return name;
	}

	public void setName(String name) {
		this.name = name;
	}

	public String getId() {
		return id;
	}

	public void setId(String id) {
		this.id = id;
	}

}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
<!-- UserService.java -->
package top.leezy.www;

import javax.ws.rs.Consumes;
import javax.ws.rs.DELETE;
import javax.ws.rs.GET;
import javax.ws.rs.POST;
import javax.ws.rs.PUT;
import javax.ws.rs.Path;
import javax.ws.rs.Produces;
import javax.ws.rs.PathParam;
import javax.ws.rs.QueryParam;
import javax.ws.rs.core.MediaType;
import javax.ws.rs.core.Response;
import javax.ws.rs.core.Response.Status;

@Path("/UserService")
// 可以注释在方法上或者类上（以最小单位为准）, 指定返回给客户端的类型
@Produces({"application/json", "application/xml"})
public class UserService {
	@GET
	@Path("/getUser/{id}")
	@Produces(MediaType.APPLICATION_XML)
	public User getUser(@PathParam("id") String id) {
		if (id != null && id.length() > 0) {
			for (User user : Config.users) {
				if(id.equals(user.getId()))
				return user;
			}
			User add_user = new User();
			add_user.setId(id);
			return add_user;
		} else {
			return new User();
		}
	}

	@POST
	@Path("/regUser")
	// 一般用于 @PUT、@POST, 用于接受客户端发送过来的MIME类型
	@Consumes({"application/json", "application/xml"})
	public Response regUser(User user) {
		if (Config.users.contains(user)) {
			return Response.status(Status.BAD_REQUEST).build();
		} else {
			Config.users.add(user);
			return Response.ok("id = " + user.getId() + ", name = " + user.getName()).build();
		}
	}

	@DELETE
	@Path("/delUser")
	@Consumes({"application/json", "application/xml"})
	public Response delPerson(@QueryParam("id") String id) {
		User user = new User();
		user.setId(id);
		if (Config.users.contains(user)) {
			return Response.status(Status.BAD_REQUEST).build();
		} else {
			Config.users.remove(user);
			return Response.ok(user).build();
		}
	}

	@PUT
	@Path("/updateUser")
	@Consumes({"application/json", "application/xml"})
	public Response updateUser(User user) {
		if (Config.users.contains(user)) {
			return Response.status(Status.BAD_REQUEST).build();
		}else {
			for (User old_user : Config.users) {
				if (old_user.equals(user)) {
					old_user.setName(user.getName());
				}
			}
			return Response.ok(user).build();
		}
	}
}

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
<!-- beans.xml -->
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns:jaxrs="http://cxf.apache.org/jaxrs"
	xsi:schemaLocation="http://www.springframework.org/schema/beans
                            http://www.springframework.org/schema/beans/spring-beans-2.5.xsd
                            http://cxf.apache.org/jaxrs
                            http://cxf.apache.org/schemas/jaxrs.xsd">

	<import resource="classpath:META-INF/cxf/cxf.xml" />
	<import resource="classpath:META-INF/cxf/cxf-servlet.xml" />

	<bean id="userService" class="top.leezy.www.UserService" />

	<jaxrs:server id="rs_server" address="/restfulService">
		<jaxrs:serviceBeans>
			<ref bean="userService" />
		</jaxrs:serviceBeans>
	</jaxrs:server>
</beans>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
<!-- web.xml -->
<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns="http://java.sun.com/xml/ns/javaee"
	xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd"
	id="WebApp_ID" version="3.0">
	<display-name>CxfRestWebservice</display-name>
	<welcome-file-list>
		<welcome-file>index.html</welcome-file>
	</welcome-file-list>

	<context-param>
		<param-name>contextConfigLocation</param-name>
		<param-value>classpath:top/**/beans.xml</param-value>
	</context-param>

	<listener>
		<listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
	</listener>

	<servlet>
		<servlet-name>cxfservlet</servlet-name>
		<servlet-class>org.apache.cxf.transport.servlet.CXFServlet</servlet-class>
		<load-on-startup>1</load-on-startup>
	</servlet>

	<servlet-mapping>
		<servlet-name>cxfservlet</servlet-name>
		<url-pattern>/webservice/*</url-pattern>
	</servlet-mapping>
</web-app>

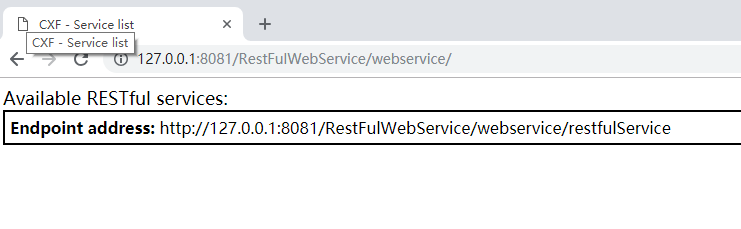

打开浏览器输入：http://127.0.0.1:8081/RestFulWebService/webservice/
RestFulWebService

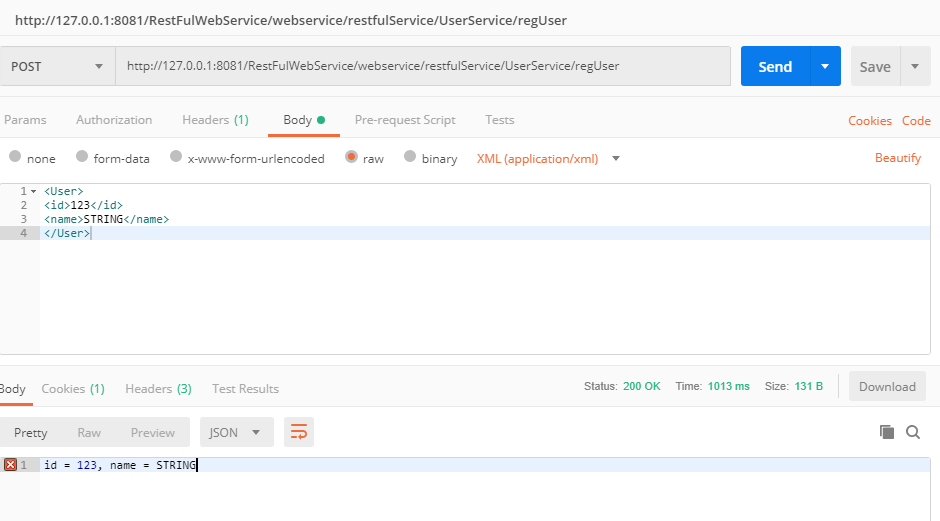

使用POSTMan进行测试：
RestFulWebService使用_POST
RestFul WebService 的JAR包较 Soap WebService 要区别以下几个：
-javax.ws.rs-api-2.1.1.jar
-cxf-rt-frontend-jaxrs-3.2.7.jar

参考文献：
[1]http://www.differencebetween.net/technology/protocols-formats/difference-between-rpc-and-web-service/[[ixzz5YLemRQhd]]
[2]https://www.cnblogs.com/zhuyiqizhi/p/6213502.html
